This Jupyter notebook is available in $GTT/dtopo/ASCE_SIFT_Region2.ipynb within the
GeoClaw Tsunami Tutorial.
It creates the file $GTT/dtopo/dtopofiles/ASCE_SIFT_Region2.dtt3, which can be used as a dtopofile in GeoClaw.
This particular tsunami source was created to produce a tsunami that satisfies certain requirements set out in the American Association of Civil Engineer’s (ASCE) guidelines for constructing certain critical infrastructure in tsunami inundation zones, as described in Wei et al. (2017). We use it here because it is easy to generate using the GeoClaw dtopotools module, since it is formed from the NOAA “SIFT unit sources” Gica et al. (2008).
Rather than building this dtopofile, it is also possible to download it using GTT/dtopo/fetch_ASCE_SIFT_Region2.py.
Setup notebook and environment:¶
%matplotlib inlinefrom pylab import *
from clawpack.geoclaw import dtopotools, topotools, kmltoolsLoad shoreline for plotting:¶
This file was created with the Download etopo22 topography notebook.
csz_shore = loadtxt('../topo/topofiles/csz_shore.txt')Create a fault using the NOAA SIFT database¶
This particular fault is specified in terms of the NOAA SIFT unit sources, so we can use the clawpack

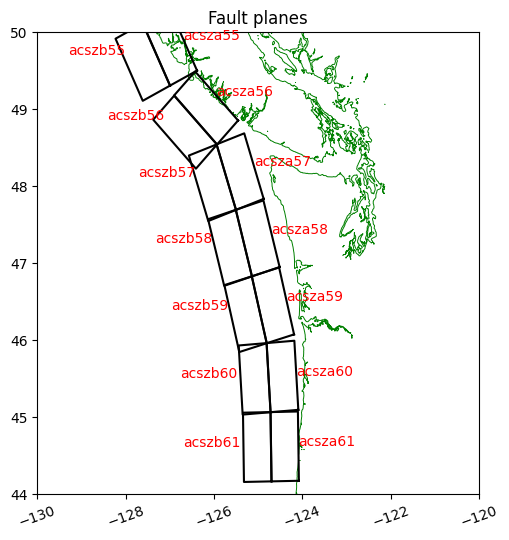

First we plot some of the unit sources on the CSZ margin.
dtopotoolsf = dtopotools.SiftFault()
SIFT = f.sift_subfaults
sift_slips = {}
for k in SIFT.keys():
s = SIFT[k] # subfault
s.longitude = s.longitude - 360.
if (-130 <=s.longitude <= -120) and (44 <= s.latitude <= 50):
if (k[4] in ['a','b']):
sift_slips[k] = 0.Downloading data from 'http://sift.pmel.noaa.gov/ComMIT/compressed/info_sz.dat' to file '/home/runner/.cache/pooch/2d12c2967b841187200a62a1ef69fbea-info_sz.dat'.
csz = dtopotools.SiftFault(sift_slips)
for k in sift_slips.keys():
s = csz.sift_subfaults[k] # subfault
s.longitude = s.longitude - 360.
figure(figsize=(6,6))
ax = axes()
ax.plot(csz_shore[:,0], csz_shore[:,1], 'g', linewidth=0.7)
#axis([-140,-110,43,50])
ax.set_xlim(-130,-120)
ax.set_ylim(44,50)
csz.plot_subfaults(axes=ax)
ax.set_aspect(1./cos(55*pi/180.))
for k in sift_slips.keys():
s = csz.sift_subfaults[k] # subfault
if k[4] == 'a':
text(s.longitude, s.latitude, k, color='r')
else:
text(s.longitude-2, s.latitude, k, color='r')
Set the slip on a set of SIFT subfaults for this event¶
event = 'ASCE_SIFT_Region2'Slips provided by Yong Wei: 35ac57a+35ac57b+10ac58a+33ac58b+10ac59a+24ac59b+30ac60a+30ac60b
sift_slips = {'acsza57':35, 'acszb57':35 , 'acsza58':10 , 'acszb58':33 , 'acsza59':10 , 'acszb59':24 ,
'acsza60':30 , 'acszb60':30 }
fault = dtopotools.SiftFault(sift_slips)
for k in sift_slips.keys():
s = fault.sift_subfaults[k] # subfault
s.longitude = s.longitude - 360.Create a uniform grid on which to evaluate the vertical deformation¶
The grid spacing will be 10 arcseconds, with a buffer of 1 degree around the horizontal extent of the subfaults. (You could specify x,y to be any other desired points to define the deformation grid.)
x,y = fault.create_dtopo_xy(dx=10./3600., buffer_size=1)
print('Created uniform grid with %i points in x and %i in y' \
% (len(x), len(y)))Created uniform grid with 1801 points in x and 2161 in y
Apply the Okada model to each of the subfaults¶
Okada applied to each subfault, with the specified slip, gives a vertical deformation that is evaluated at all points on the grid defined by x, y. These are added together for all the subfaults, since the Okada model is linear.
print('Creating dtopo by applying Okada model to %s subfaults...' % len(fault.subfaults))
dtopo_SIFT = fault.create_dtopography(x,y, verbose=False)Creating dtopo by applying Okada model to 8 subfaults...

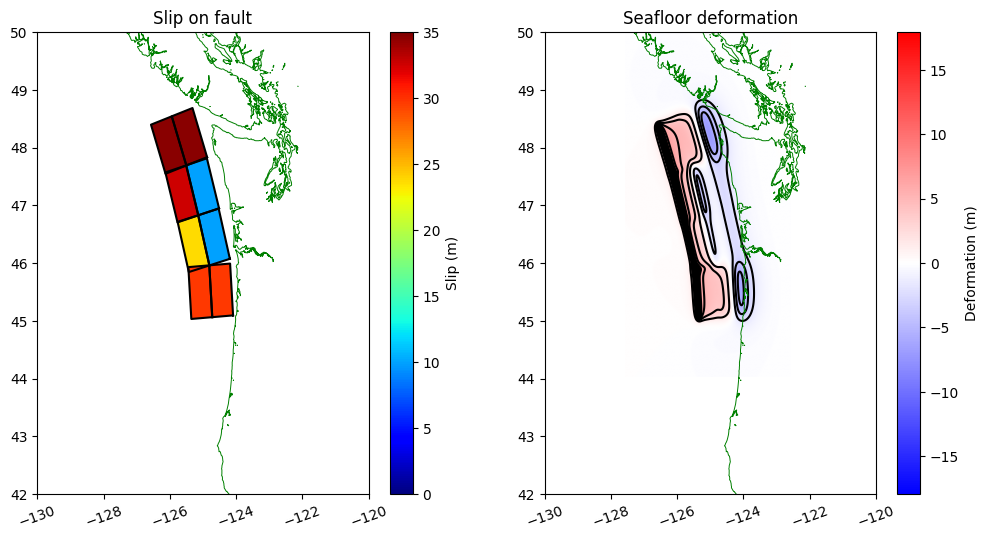

Plot the slip distribution and the resulting vertical deformation dz¶
# for setting color scale:
dz_max = abs(dtopo_SIFT.dZ).max()
print("maximum abs(dz) over the full rupture time:", \
abs(dtopo_SIFT.dZ).max())
fig = figure(figsize=(12,6))
ax1 = fig.add_subplot(121)
ax2 = fig.add_subplot(122)
fault.plot_subfaults(axes=ax1, slip_color=True)
dtopo_SIFT.plot_dZ_colors(axes=ax2, t=1, cmax_dZ=dz_max)
ax1.plot(csz_shore[:,0], csz_shore[:,1], 'g', linewidth=0.7)
ax1.set_xlim(-130,-120)
ax1.set_ylim(42,50)
ax1.set_aspect(1./cos(55*pi/180.))
ax2.plot(csz_shore[:,0], csz_shore[:,1], 'g', linewidth=0.7)
ax2.set_xlim(-130,-120)
ax2.set_ylim(42,50)
ax2.set_aspect(1./cos(55*pi/180.));
fname = 'dtopofiles/%s.png' % event
savefig(fname, bbox_inches='tight')
print('Created ',fname)maximum abs(dz) over the full rupture time: 17.93480928266853
Created dtopofiles/ASCE_SIFT_Region2.png
Save as a dtopo file¶
fname = 'dtopofiles/%s.dtt3' % event
dtopo_SIFT.write(fname, dtopo_type=3)
print('Created ',fname)Created dtopofiles/ASCE_SIFT_Region2.dtt3
Make a kmz file that shows contours of dtopo:¶
fname_kmz = 'dtopofiles/%s_contours.kmz' % event
kmltools.dtopo_contours2kmz([fname], dtopo_type=3,
dZ_interval=2, dZmax=20,
text_label=True,
text_x=dtopo_SIFT.x.min(),
text_y=dtopo_SIFT.y.mean(),
fname_kmz=fname_kmz)
Making contours for event = ASCE_SIFT_Region2
contour interval = 2m
Using kml_dpi = 576,figure size 12.506944 by 15.006944 inches
Figure has 1801 by 2161 grid cells of uniform color
Dots per cell in x: 4.000000, in y: 4.000000
These should be integers
Extent: -127.570423 -122.567645 44.030951 50.033729
Created dtopo_contours.kml
Created dtopofiles/ASCE_SIFT_Region2_contours.kmz
Removing temp_dtopos_kml
Open the resulting file dtopofiles/ASCE_SIFT_Region2_contours.kmz in Google Earth to see contours of the vertical deformation.
